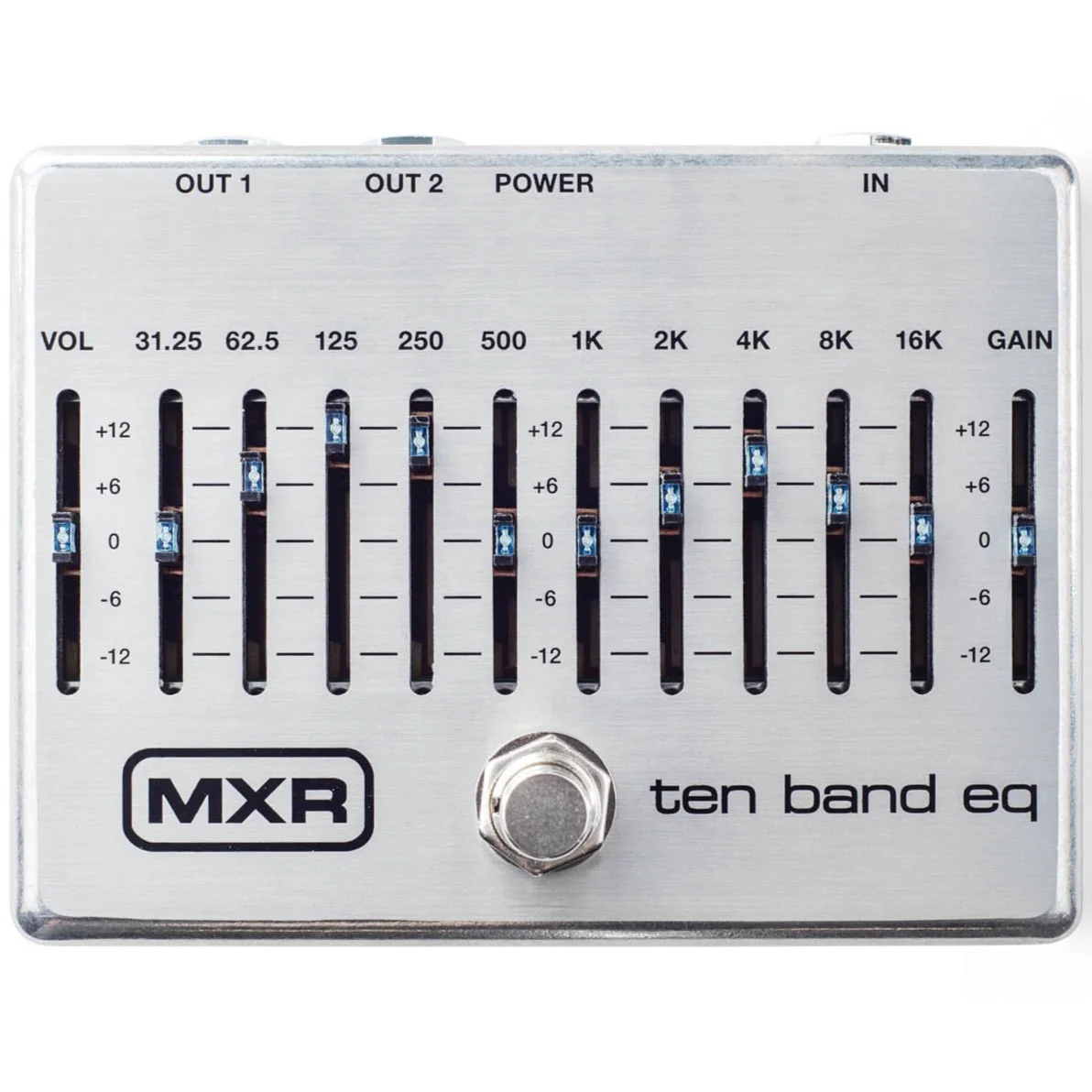

The MXR Ten Band EQ lets you tune your bass or guitar rig in seconds, and it’s been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs, and a second output.

• The Ten Band EQ is powered by an 18-volt AC adapter such as the included Dunlop ECB004 or the DC Brick™ and Iso-Brick™ power supplies.

The Long Story

The MXR Ten Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs for increased visibility, and a second output so you can run two separate signal chains. With ten carefully chosen frequencies and both input and output level controls, the Ten Band EQ will let you tune your bass or guitar rig to any room in seconds—create earthshaking low-end; restore punch, level, and treble response to a crowded pedalboard; warm up an amplified acoustic; and much, much more. For ultimate tone-sculpting ability in a bullet-proof enclosure, put the Ten Band EQ on your pedalboard.

Controls

Specs

• Input Impedance 470 kΩ
• Output Impedance 5 kΩ
• Max Input Level +14 dBV
• All Sliders at 0 dB at 1 kHz
• Max Output Level +14 dBV
• All Sliders at 0 dB at 1 kHz
• Frequency ±1 dB, 20 Hz
• Response to 20 kHz
• Noise Floor* -101.4dBv

• Filtering ±12db at: ±12dB shelf
• 31.25, 62.5, 125, at 16kHz
• 50, 500, 1k, 2k,
• 4k, 8kHz
• Bypass True Hardwire

• Power Supply 18 Volts DC (included Dunlop ECB004)
• Current Draw 48 mA
