This Cry Baby Wah features a Q control to vary the intensity of the effect, a Volume Boost control for up to +15dB added gain, and convenient auto-return switching.

More

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

We've taken the original Cry Baby Wah and added three of our most popular upgrades: the famous "Q" Control, which varies the intensity of the wah effect by adjusting the effect's bandpass shape; Volume Boost, for up to +15dB added gain; and our Auto-Return function that automatically engages the effect when you place your foot on the pedal. It all adds up to a versatile, great sounding wah.

Specs

• VOLUME knob controls amount of gain added by BOOST switch, up to 15dB
• VARIABLE Q knob adjusts frequency range of wah wah effect
• BOOST switch increases output as set by the VOLUME knob
• Silent "auto-off" switching puts pedal into bypass mode when you take your foot off
• POWER

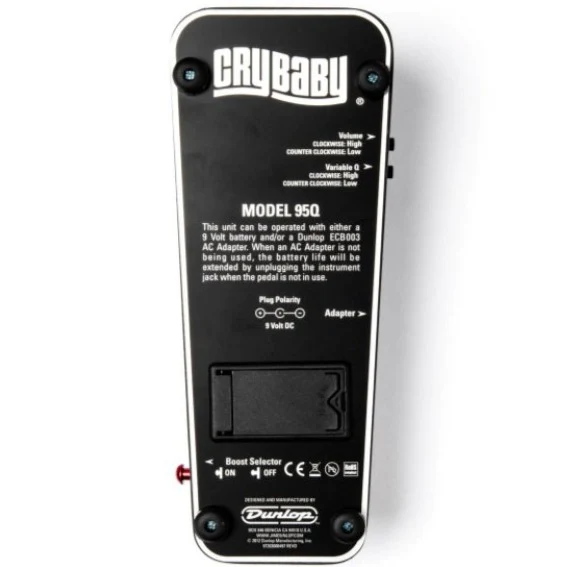

• The 95Q Cry Baby ® Wah Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ ECB003E, or a DC Brick ™ power supply
• Impedance
• Input 1 MΩ
• Output 1 kΩ
• Noise Floor*
• Heel Down -98 dBV
• Toe Down -90 dBV
• Bypass Filter
• Center Frequency 390 Hz to 2 kHz
• Maximum Gain 17 dB
• Boost Range 0.1 dB to 15 dB
• Bypass Buffered
• Current Draw 1.8 mA
• Power Supply 9 volts DC
