Dunlop GCB95 Cry Baby Wah
The Cry Baby Wah is the most iconic guitar effect in music history. When it hit the scene in 1966, it added a whole new layer of expression to the electric guitar - players such as Jimi Hendrix and Eric Clapton used the Cry Baby Wah to create some of the most timeless sounds in rock.
More
The GCB95 is a modern interpretation of that sound, featuring the lush, expressive character of the legendary red Fasel inductor with a more focused high end and a more aggressive and accentuated wah sound. With a heavy-duty die-cast housing and a sturdy pot, the Cry Baby Wah will withstand years of playing.
Features
- This Cry Baby Wah features the legendary Fasel® inductor, a focused high end, and an aggressive wah sound.

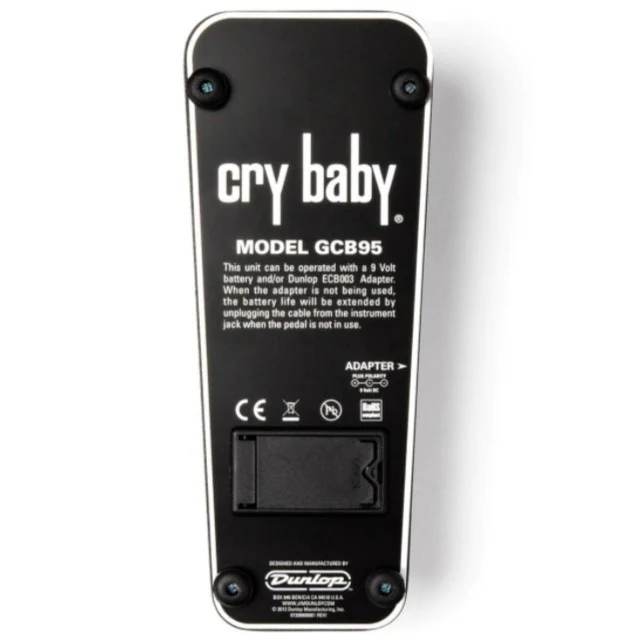

- This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
- Impedance
- Input 800 kΩ
- Output 10 kΩ
- Filter Parameter
- Low Pass 350 Hz ~ 450 Hz
- High Pass 1.5 kHz ~ 2.5 kHz
- Maximum Level
- Input -8.0 dBV
- Output +10 dBV
- Maximum Gain
- Heel Down +19.5 dB
- Toe Down +19 dB
- Signal to Noise Ratio*
- Heel Down 98 dBV
- Toe Down 89 dBV
- Current Draw 900µA
