Pro Sound Every Time You Press Record

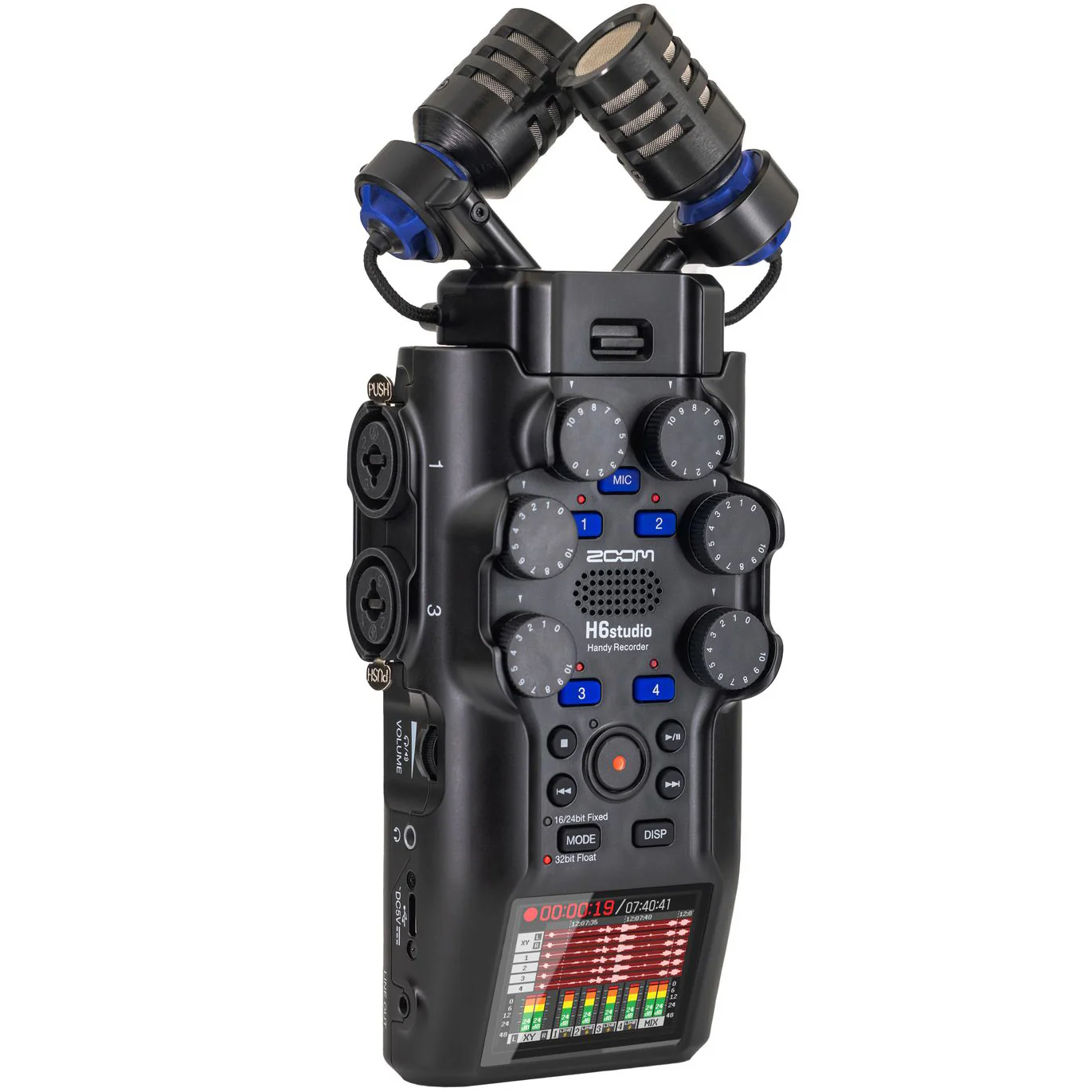

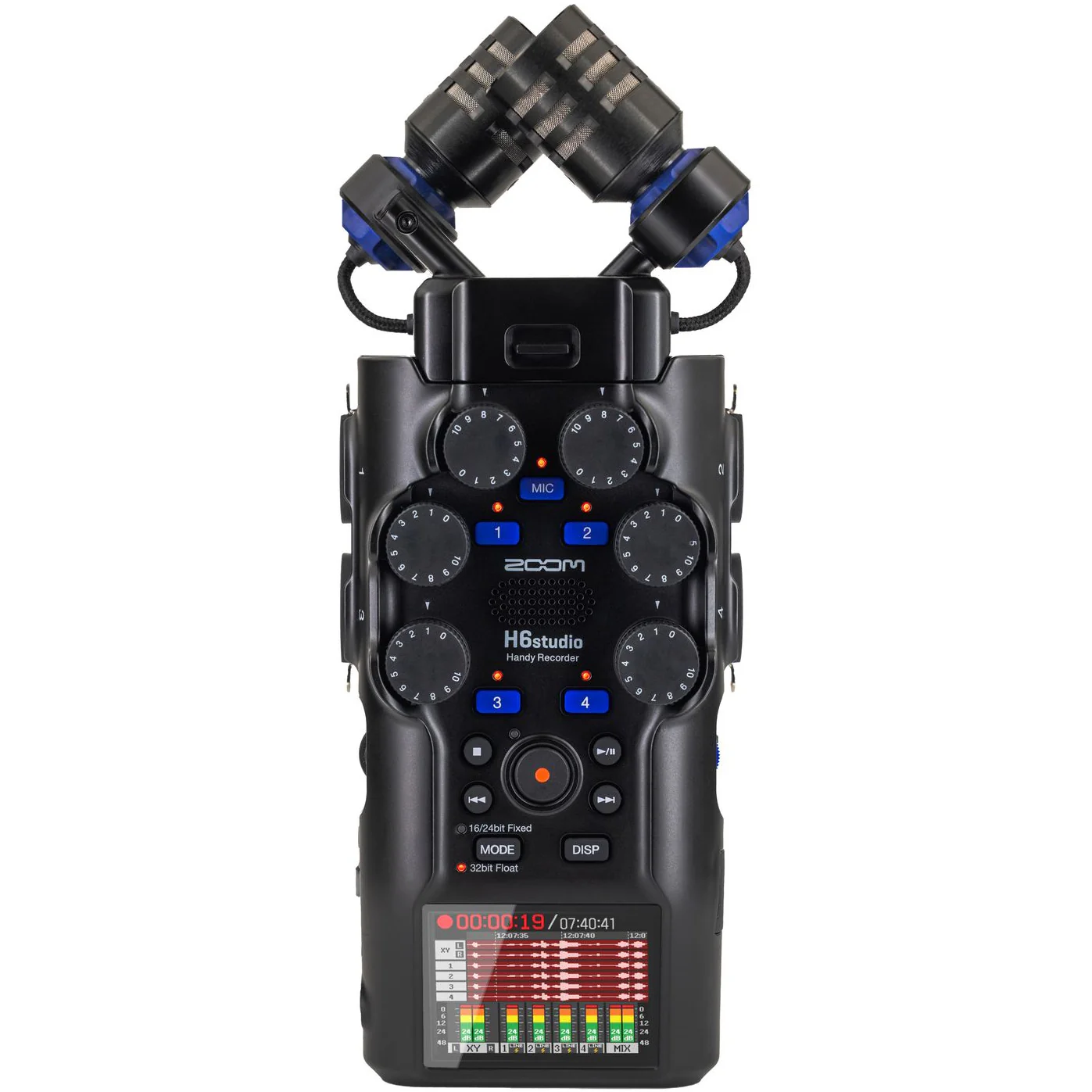

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.

More

• The Power of F-Series Preamps
  The H6studio’s preamps deliver ultra-clean audio (-127 dBu EIN). Paired with dual A/D converters and 32-bit float, they provide
  132 dB of dynamic range to capture every nuance.
• The Perfect Pair
  The onboard mics are stacked at a 90º angle to form a perfect X/Y pair. This minimizes phase cancellation commonly experienced with AB and other mic arrangements that can result in hollow sound.
• Bigger Mics, Bigger Sound
  The H6studio’s 19.4mm microphones capture a rich, flat-response with a wide dynamic range that can withstand 140 dB SPL, enough for a jet engine.
• Switch Formats, Not Recorders
  32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.
• The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production. And with the dedicated format switch, you can adapt your workflow quickly.
• 6 Tracks Plus a Stereo Mix
  Record with sample rates from 44.1 to 192 kHz. The H6studio can capture up to 8 tracks* at once - 6 individual tracks plus a stereo mix.

  • *Stereo mix is only available up to 96kHZ
• The Noise Stops Here
  Carefully designed RF shielding blocks interference from smartphones and Wi-Fi, while the shock-mounted mics help reduce handling noise.
• Limiters That Look Ahead
  The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.
• Four XLR/TRS Inputs + Stereo Mini Jack
  The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support. It also has a stereo mini jack with plug-in power.
• Next Generation Capsule System
  The H6studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording. Use the included mic connector cover when no capsules are needed.

  • *Compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e
• Wireless Capsule
  The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter's built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL.

  • * Available in 2026, compatible with Capsule System 3.0
• See Your Sound in Real Time
  See your levels and waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view.
• Versatile Output Options
  • Headphone Out
    Use the loud 20mW headphone output to monitor or listen back to your recordings in any environment.
  • Line Out
    Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.
  • Onboard Speaker
    The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.
• USB Audio Interface
  Use the H6studio as a 6-in/2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16/24-bit recording. Stream and simultaneously record a backup to the microSD card.
• Accurate Wireless Timecode
  The TCA-1 timecode adapter* generates and outputs timecode or jams to an external clock with .5 ppm accuracy. You can also receive wireless timecode from the ATOMOS® UltraSync BLUE.**

  • *Available separately, releasing 2026 Spring

  • **BTA-1 Bluetooth Adapter Required
• Handy Control & Sync
  With the ZOOM Handy Control & Sync app for iOS, you can remotely manage multiple Zoom recorders*, control start/stop, and synchronize timecode effortlessly.**

  • *Current compatible models: H6studio, H5studio, H2essential

  • **BTA-1 Bluetooth Adapter Required
• 15-Hour Battery
  Operates on 4 AA alkaline batteries for up to 15 hours of recording. For longer sessions, use a USB mobile battery or AC adapter*.

  • *AD-17 sold separately
• Designed for Everyone
  The H6studio is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*
• Complete Your Setup
  The optional accessory pack (APH-6st) includes a padded shell case, hairy windscreen, AC adapter, and USB-C cable.

Features

• Mono mode for recording interviews, narration, and vocals
• Low-cut filter to suppress low-frequency noise
• Normalizing and exporting audio files in 24-bit/16-bit WAV formats
• Variable speed playback (0.5 to 2.0x) and A-B repeat playback of recorded files
• The recording start tone function useful for aligning audio with video
• Records onto microSDHC/microSDXC cards up to 2TB*

Specs

Inputs

• Mic capsule: 1
• MIC/LINE (mono): 4

Outputs

• LINE OUT
• Connector: 1 stereo mini jack
• Maximum Output Level: +1 dBu
• Output Impedance: 110 Ω or less

Headphone

• Connector: 1 stereo mini jack
• Maximum Output Level: 20 mW + 20 mW (when 32 Ω load)
• Output Impedance: 10 Ω or less

Built-in Speaker

• Type: 20 mm × 30 mm elliptical dynamic speaker
• Effective Maximum Output: 250 mW

Recorder

• Maximum Simultaneous Recording Tracks: 8
• Maximum Simultaneous Playback Tracks: 6
• Recording Formats: WAV (44.1 / 48 / 96 / 192 kHz, 16-bit / 24-bit / 32-bit float, mono/stereo)
• Format Support: BWF and iXML
• Recording Media: microSDHC / microSDXC memory cards
• Compatibility Info: CLICK HERE for details on supported microSD cards

Display

• Type: 2.00" full-color LCD
• Resolution: 320 × 240

USB

• Connector: USB Type-C (use a cable that supports data transfer)
• Audio Interface: USB 2.0 High Speed
• Input/Output Channels:
  • 6 in / 2 out (Multi)
  • 2 in / 2 out (Stereo)
• Sampling Frequencies:
  • 44.1 / 48 / 96 kHz (audio interface only)
  • 44.1 / 48 kHz (audio interface + onboard recording)
• Bit Depths: 24-bit, 32-bit float
• File Transfer: USB 2.0 High Speed

Remote

• Dedicated Wireless Adapter: ZOOM BTA-1

Power

• Battery: 4 × AA (alkaline, lithium, or rechargeable NiMH)
• AC Adapter: ZOOM AD-17 (DC 5 V / 1 A)
• USB Bus Power: Supported
