Built for working musicians, the MODX M Series combines expressive control, streamlined workflow, and exceptional sound in a lightweight design perfect for stage or studio.

More

INSPIRED PERFORMANCE
Take your performance anywhere with the compact, lightweight MODX M featuring three powerful engines:

• AN-X – recreates warm vintage analog synths
• FM-X – offers cutting-edge modern synth sound
• AWM2 – delivers ultra-realistic instrument sounds

Plus, MODX M offers an upgrade of up to 268 notes of polyphony across its three engines and approximately 2x the memory over MODX/MODX+ with an increase from 5.68GB to 10.7GB of AWM2 memory, and 1.9GB of User flash memory.

UNIQUE EXPRESSION
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly beneficial for live performances, this intuitive control improves overall usability and adds dimension to each Performance.

The MODX M Knobs, Super Knob, Pitch Bend, Mod Wheel, and Sound Engine are now High Resolution. Because of the fine resolution, you’ll find the MODX M performs smoother than its predecessors.

EXPANDED CREATIVITY
Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite Digital Audio Workstation (DAW). ESP lets you create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration.  (Available early 2026)

Upgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a color touchscreen, 6 display knobs, and Stereo A/D input with 2 insertion effects.

Features

• Exceptional Sound: 3 powerful engines recreate classic analog synths, modern FM synths, and realistic instruments for a variety of sounds

• Expressive Control: Intuitive performance controls, including 8 physical faders and Super Knob, give you real-time hands-on expression

• Optimized Workflow: Upgraded navigation enables quick, intuitive sound editing and operation with features like a color touchscreen and 6 dedicated display knobs

• Improved Keyboard Action: 61 semi-weighted keys deliver faster, more substantial feeling synth action for improved playability when compared to MODX+

• Stage and Studio Integration: Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite DAW - create, edit and mix sounds anywhere
• AN-X Engine – Advanced virtual analog engine with 2 filters, 10 filter types, pulse width modulation, oscillator sync, ring modulation, FM, wave shaping, plus voltage drift and aging controls
• AWM2 Sound Engine – Up to 128 elements per part for deep layering and detailed articulation, ideal for expressive instruments like piano and strings
• Motion Control Synthesis Engine – Powerful sound design tools including Motion Sequences, Super Knob, and Envelope Follower
• USB MIDI 2.0 + 10-Out / 4-In Audio Interface – Record MIDI, monitor virtual instruments, and capture multi-track audio via a single USB cable
• Cubase AI Included – DAW software for recording, editing, and mixing across all music genres
• Eight Physical Faders – Real-time hands-on control for performance, mixing, and sound editing

Specs

Keyboard

• Number of Keys: 61
• Type: Semi-weighted FSB Keyboard
• Initial Touch: Yes
• Aftertouch: No

Effects

• Reverb: 13 types
• Variation: 88 types
• Insertion A: 88 types
• Insertion B: 89 types
• Master Effect: 26 types
• A/D Part Insertion: 83 types
• Master EQ: 5 bands
• 1st Part EQ: 3 bands
• 2nd Part EQ: 2 bands

Controllers

• Master Volume
• A/D Input Gain Knob
• Pitch Bend Wheel
• Modulation Wheel
• 8 Control Sliders
• 4 Knobs
• Super Knob
• 6 Display Knobs
• Portamento Knob
• Data Dial
• 2 Assignable Switches
• MSEQ Trigger Switch
• Portamento Switch
• Keyboard Hold Switch

Display

• 7" TFT Color Wide VGA LCD Touchscreen

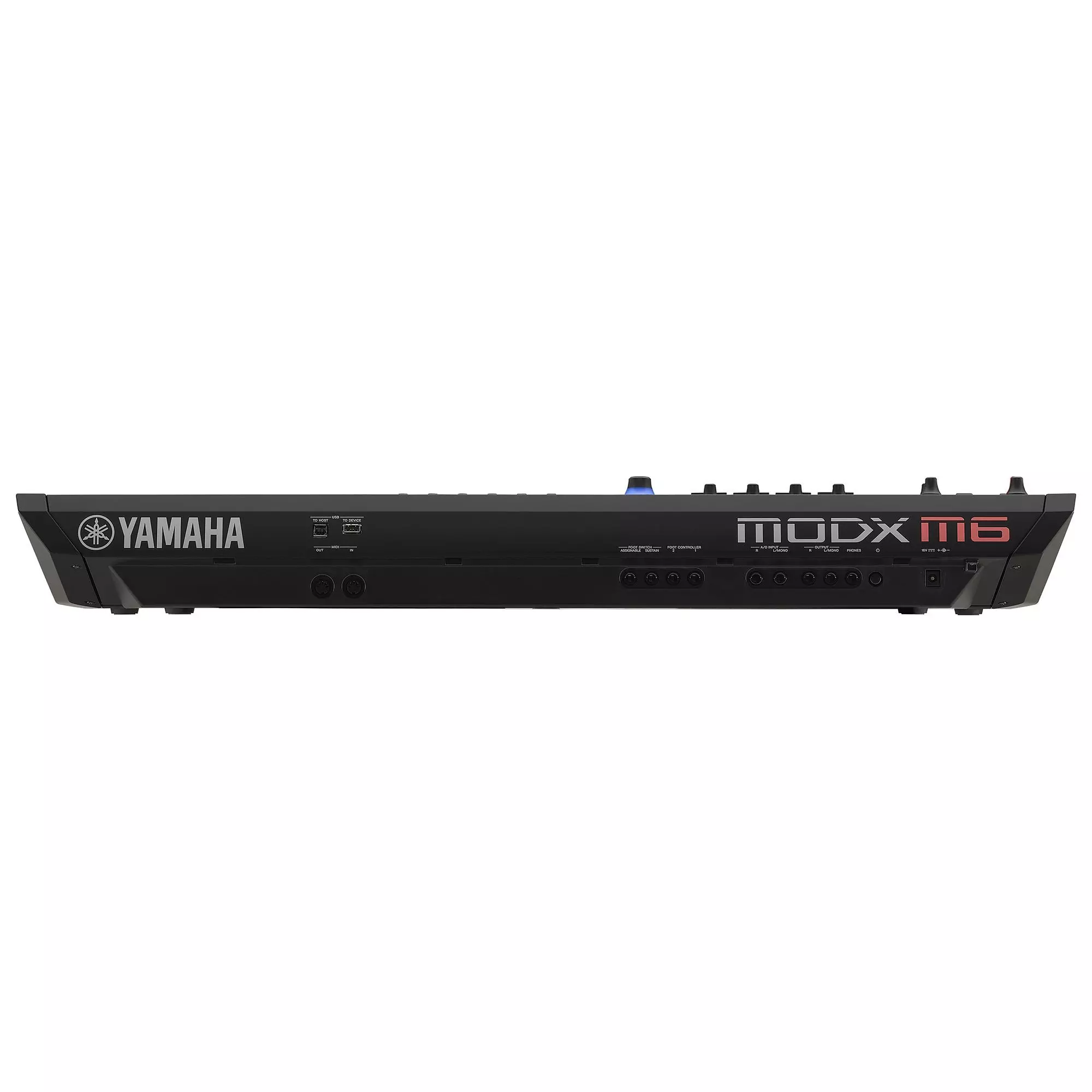

Connectors

• USB [TO DEVICE]
• USB [TO HOST]
• MIDI IN / OUT
• Foot Controller [1]/[2]
• Foot Switch [SUSTAIN]/[ASSIGNABLE]
• OUTPUT [L/MONO]/[R] (6.3 mm)
• PHONES (6.3 mm stereo)
• A/D INPUT [L/MONO]/[R] (6.3 mm)

Power

• Power Consumption: 19 W (using PA-300C adaptor)

Accessories

• AC Adaptor (PA-300C)
• Quick Guide
• Cubase AI Download Information
• Expanded Softsynth Plugin Download Info
• Manual Download Info
• Welcome Card

Dimensions & Weight

• Width: 882 mm (34-3/4")
• Height: 117 mm (4-5/8")
• Depth: 347 mm (13-11/16")
• Weight: 6.6 kg (14 lb, 9 oz)
