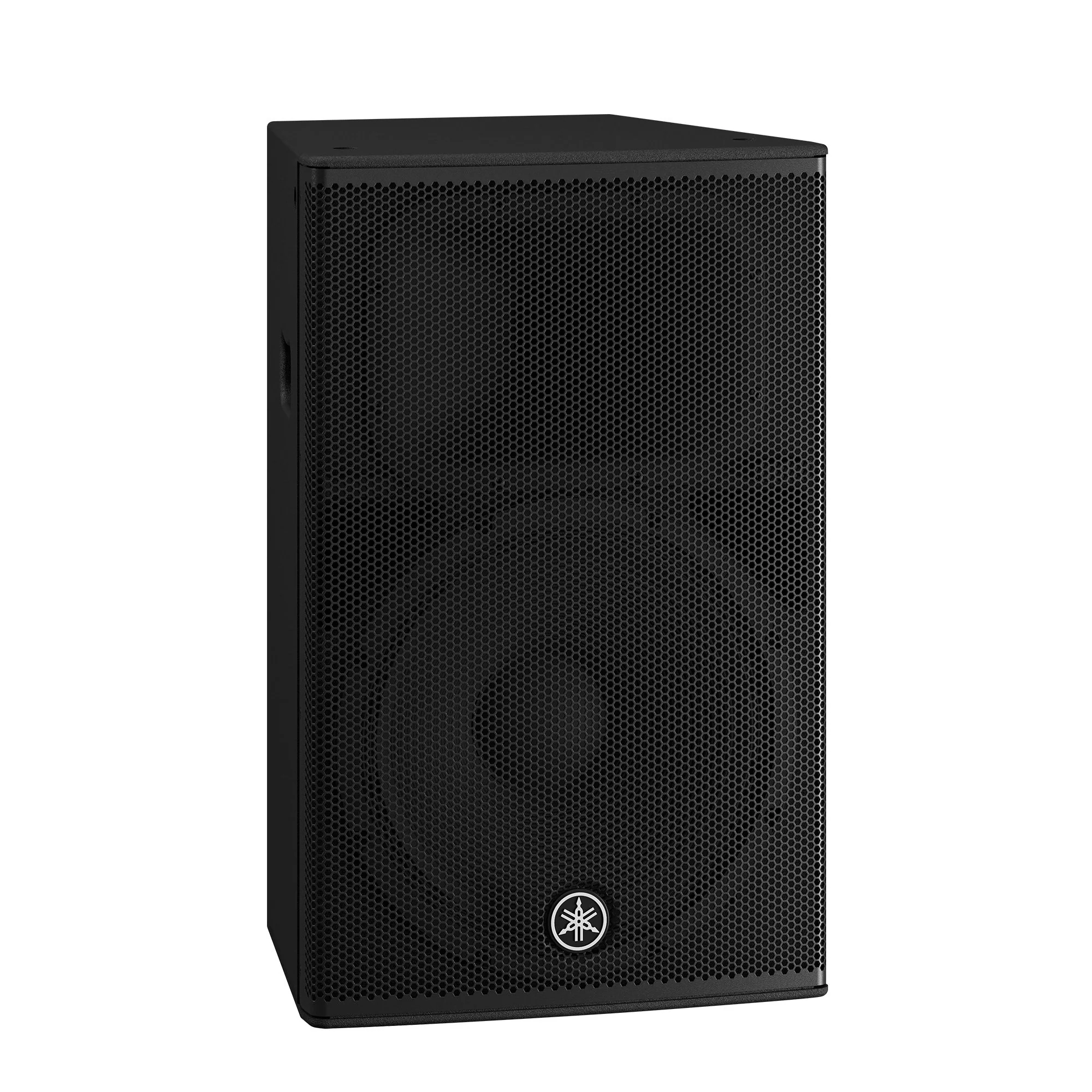

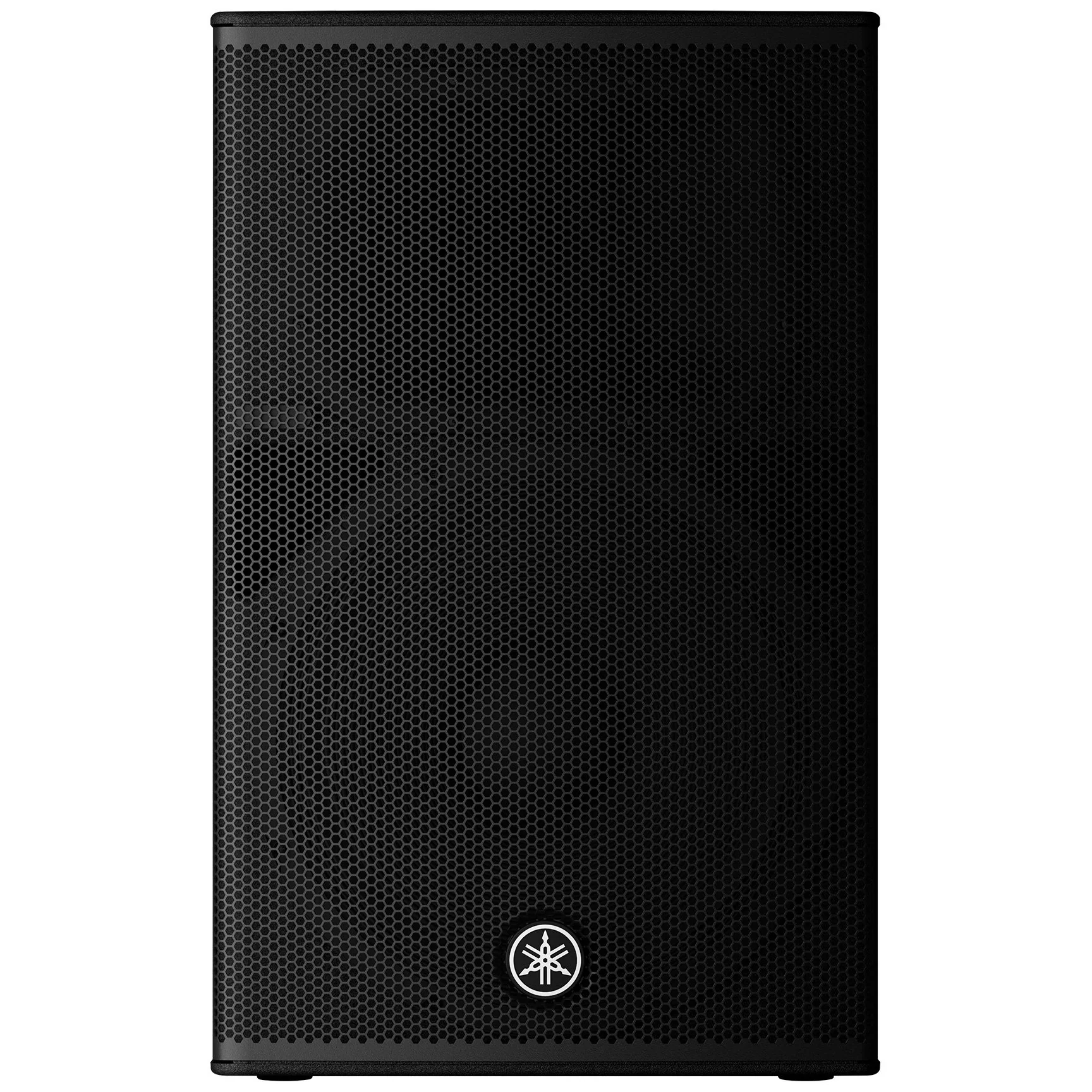

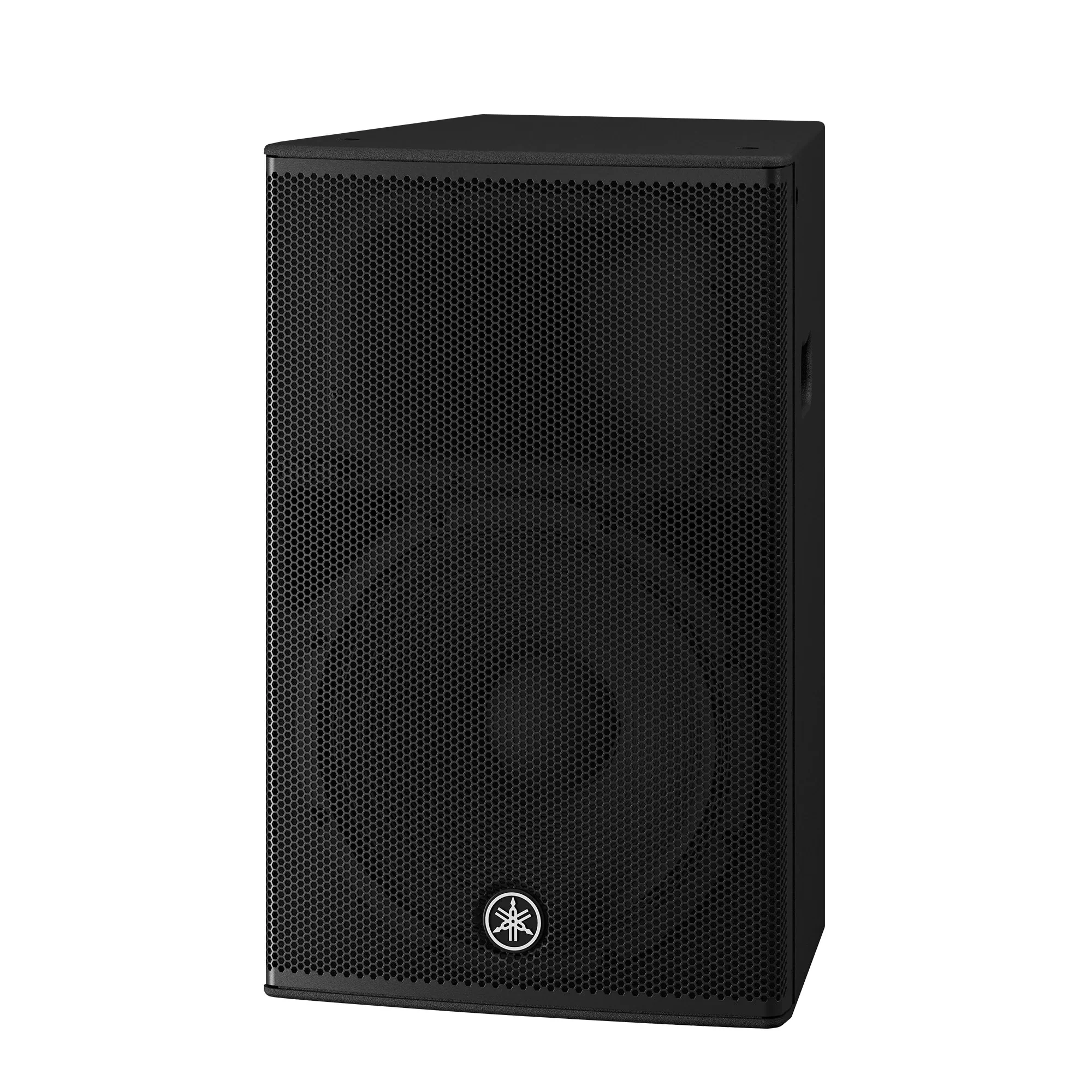

Yamaha DHR15 Powered Speaker, 1000W, 15" LF, 1.4" HF Compression Driver
Performance. Optimized.
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?
The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.
More
Cabinet designs optimized for a range of audio environments
The DHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10” model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12” model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.
Yamaha DHR10: Rotatable HF Horn & Optional U-bracket (UB-DXRDHR10)
DHR10: Rotatable HF Horn & Optional U-bracket (UB-DXRDHR10)
Yamaha DHR12M: Coaxial Compression Driver
Yamaha DHR15: Rigging points for standard eye bolts
Custom Designed Transducers
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver* produces accurate mid-range and high frequencies.
* DHR12M features a 1.75” coaxial compression driver.

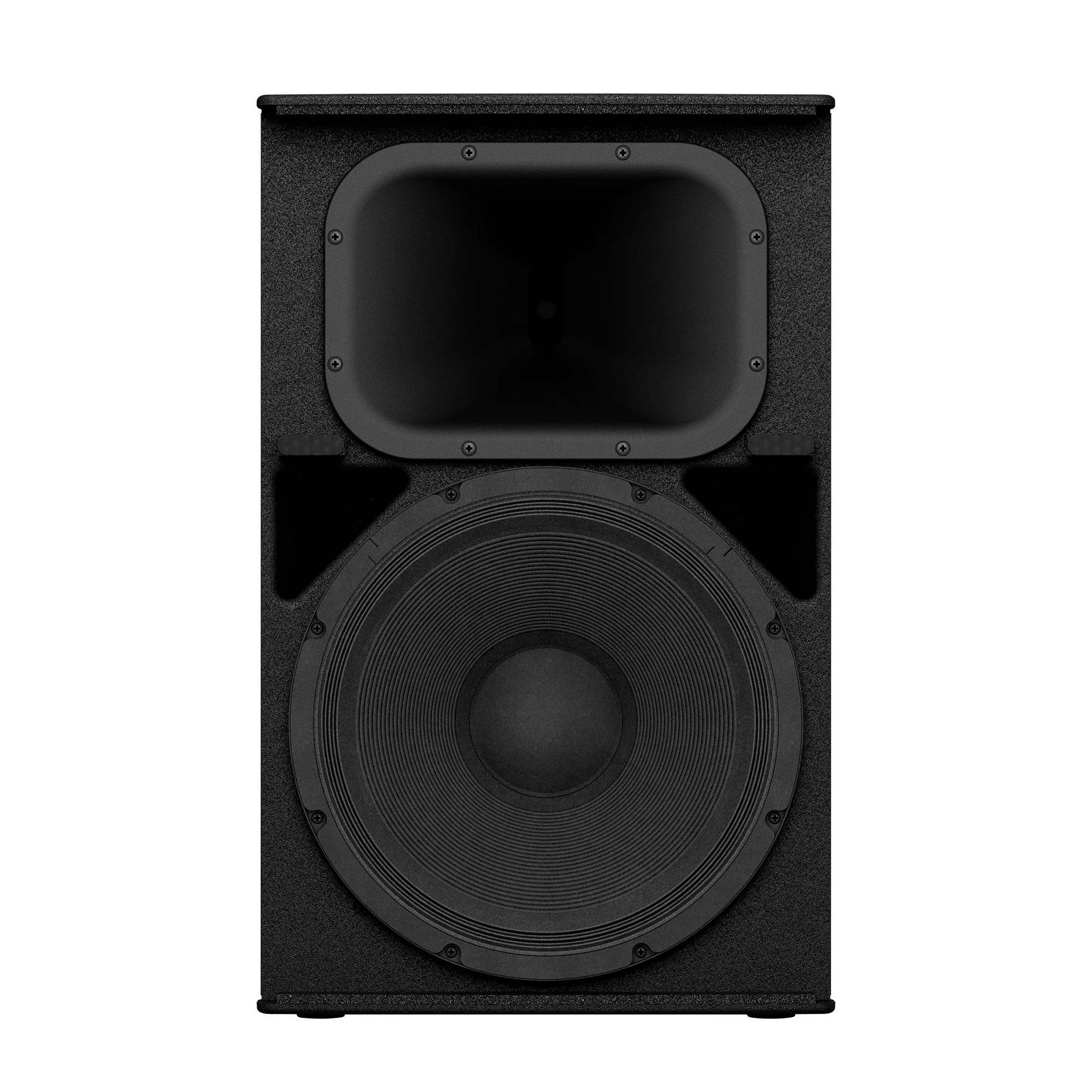

Yamaha DHR Series: LF & HF transducer (DHR15, DHR10)
Yamaha DHR Series: 1.75” coaxial compression driver (DHR12M)
1.75” coaxial compression driver (DHR12M)
A Rugged, Highly Portable Cabinet
The DHR series feature plywood enclosures like our acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.
Features
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Specs
- Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB) 44 Hz - 20 kHz
- Coverage area H90ﾟ x V60ﾟ
- Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
- Maximum Output Level (Measured peak, IEC noise@1m) 131 dB SPL
- Components LF Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
- Components HF Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
- Amplifier class Class-D
- Dynamic Power Rating 1,000 W (LF: 800 W, HF: 200 W) *1
- Continuous Power Rating 465 W (LF: 400 W, HF: 65 W)
- Cooling Fan cooling, 4 speeds
- Power consumption 74 W (1/8power), 18 W (Idle)
- Power requirements 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
- A/D D/A Converters 24 bit 48 kHz Sampling
- Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

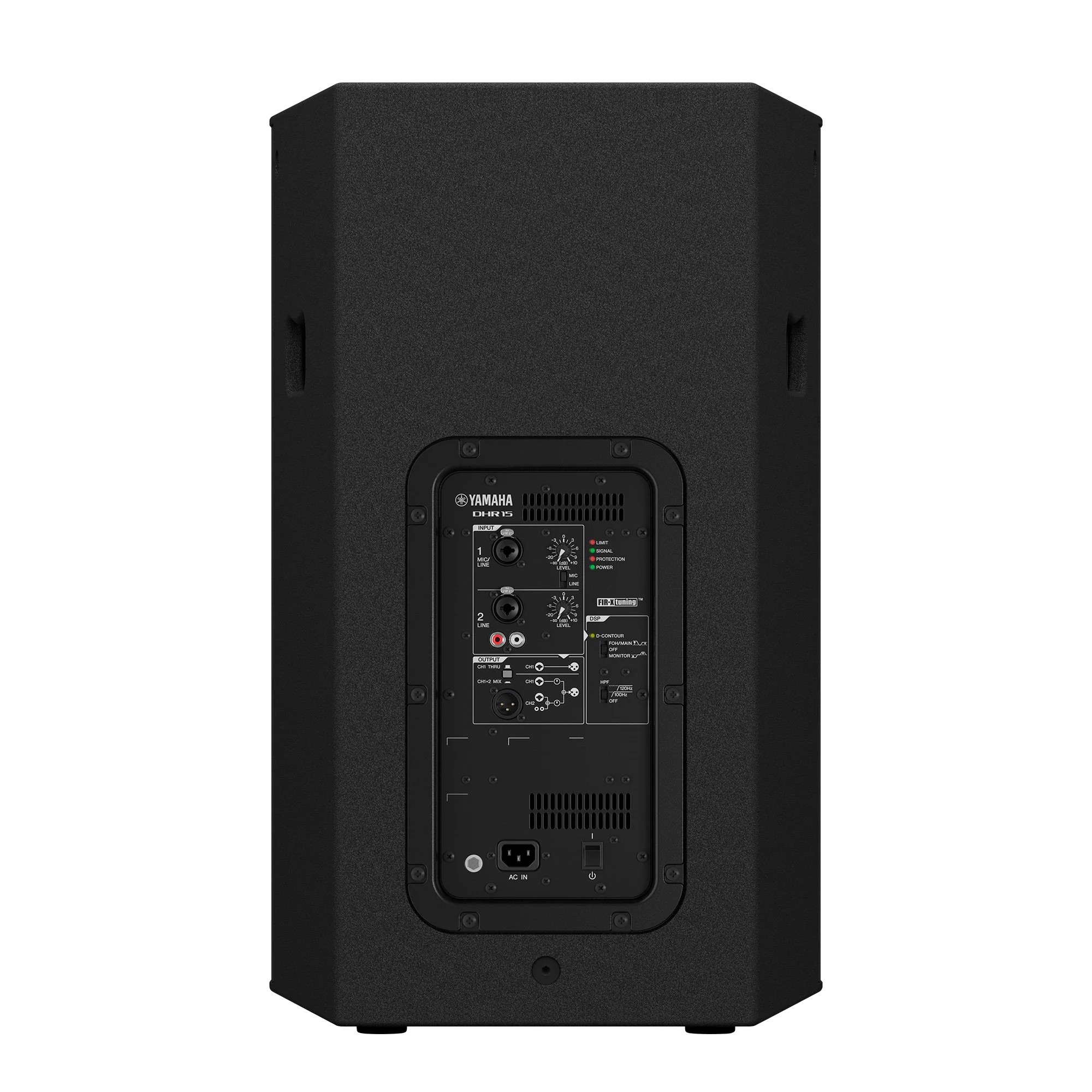

- I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Cabinet material Plywood
- Finish Durable Polyurea Painting, Black
- Handle Side x2
- Pole socket Φ35 mm x2 (Bottom, 0° or -7°)
- Rigging Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Floor Monitor Angle -
- W 432 mm (17.0")
- H 692 mm (27.2") (with rubber feet)
- D 405 mm (15.9")
- Net weight 24.0 kg (52.9 lbs)
- Options -
