Performance. Optimized.

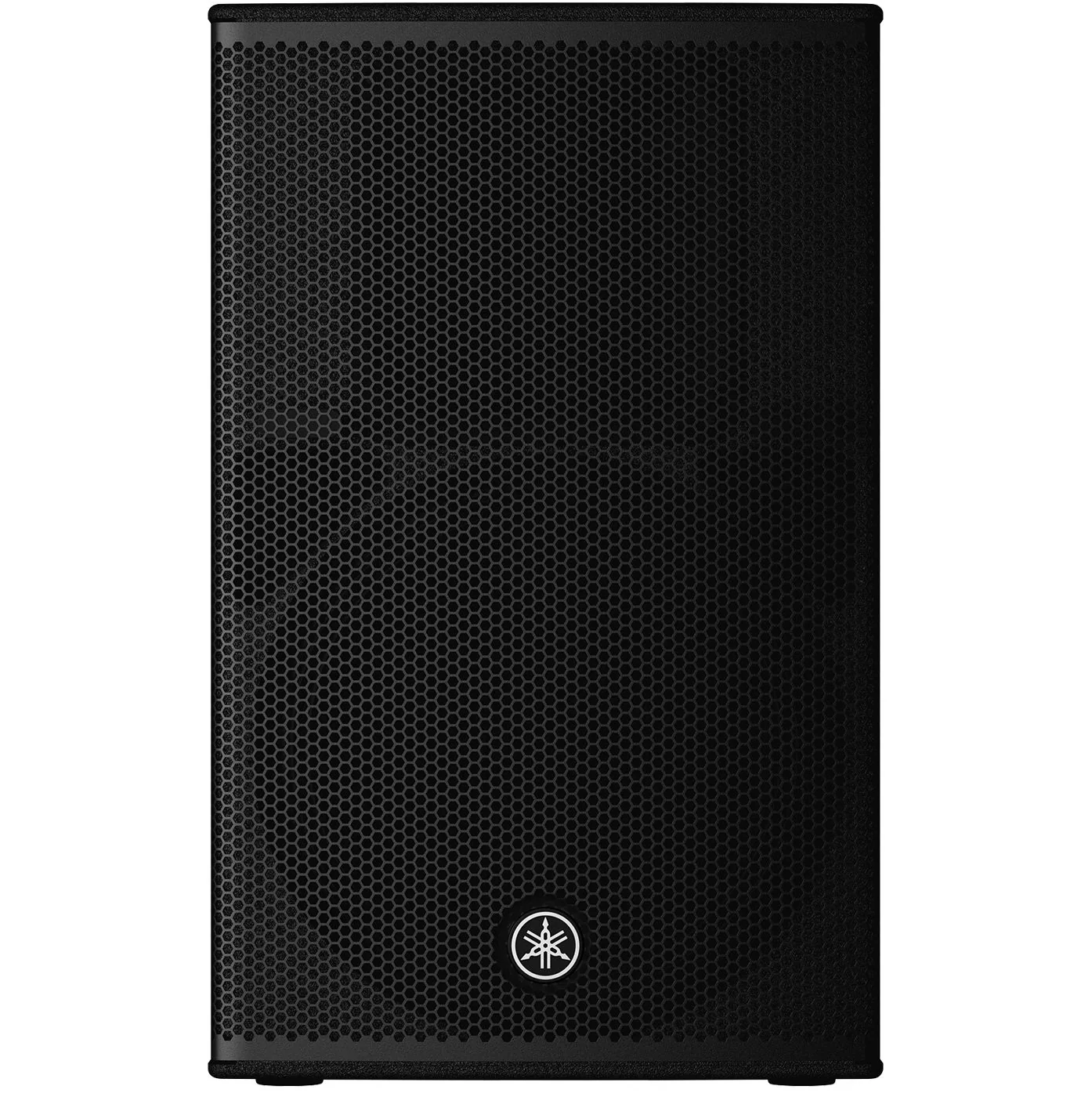

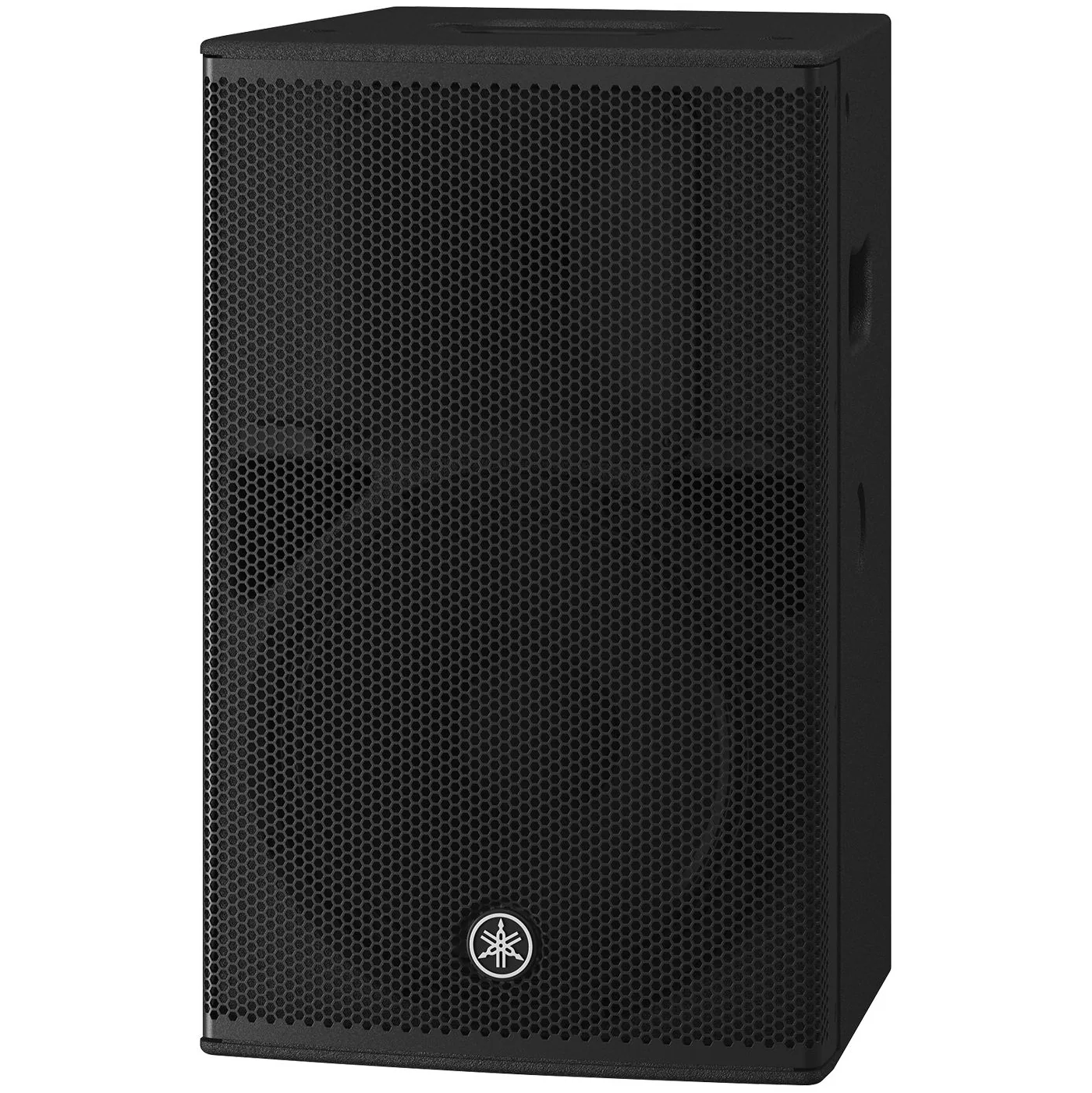

The DHR12 is a 2-way bi-amp powered loudspeaker equipped with a 12-inch woofer and a 1.4-inch HF driver, perfect for use as a main or utility speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on our high-end DZR Series, the DHR12 offers best-in-class sound quality and durability.

Optimized to meet the demands of fixed installations and utility applications, the DHR12 features custom transducers driven by a DSP-equipped Class-D power amplifier to deliver stunning sound quality and clarity. Combined with practical features adapted for its specific role, this model offers the flexibility and performance needed to excel in a wide variety of sonic environments. Isn’t it time you audition the DHR12 to improve your sound?

Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration

• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface

• Compact size despite the 12-inch LF driver that provides excellent low frequency response

• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments

• Optional UB-DXRDHR12 U-bracket allows both for vertical or horizontal use

• Dual-angle pole sockets offer both 0° or a -7° down tilt

• Rigging points for use with eye bolts

• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Specs

Technical Specifications

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10dB): 48 Hz – 20 kHz
• Coverage Area: H90° x V60° (Rotatable horn)
• Maximum Output Level: 130 dB SPL (Measured peak, IEC noise @ 1m)
• Crossover: 1.8 kHz (FIR-X tuning™ linear phase FIR filter)

Components & Transducers

• LF (Low Frequency): 12" cone, 2.5" voice coil, Ferrite magnet
• HF (High Frequency): 1.4" diaphragm, 1" throat compression driver, Ferrite magnet

Amplifier & Processing

• Amplifier Class: Class-D
• Power Rating (Dynamic): 1,000 W (LF: 800 W, HF: 200 W)
• Power Rating (Continuous): 465 W (LF: 400 W, HF: 65 W)
• DSP Processing: HPF (OFF, 100 Hz, 120 Hz), D-CONTOUR (FOH/MAIN, MONITOR, OFF)
• AD/DA Converters: 24-bit / 48 kHz sampling
• Cooling: 4-speed fan cooling

Enclosure & Physical Specs

• Material: Premium Plywood with a durable Polyurea coating (Black)
• Dimensions (W x H x D): 14.1" x 22.8" x 13.4" (359 x 578 x 340 mm)
• Net Weight: 41.7 lbs (18.9 kg)
• Handles: Side x 2, Top x 1
• Pole Socket: 35 mm (Dual-angle: 0° or -7°)
• Rigging: Top x 2, Rear x 1 (Fits M10 x 18 mm eyebolts)

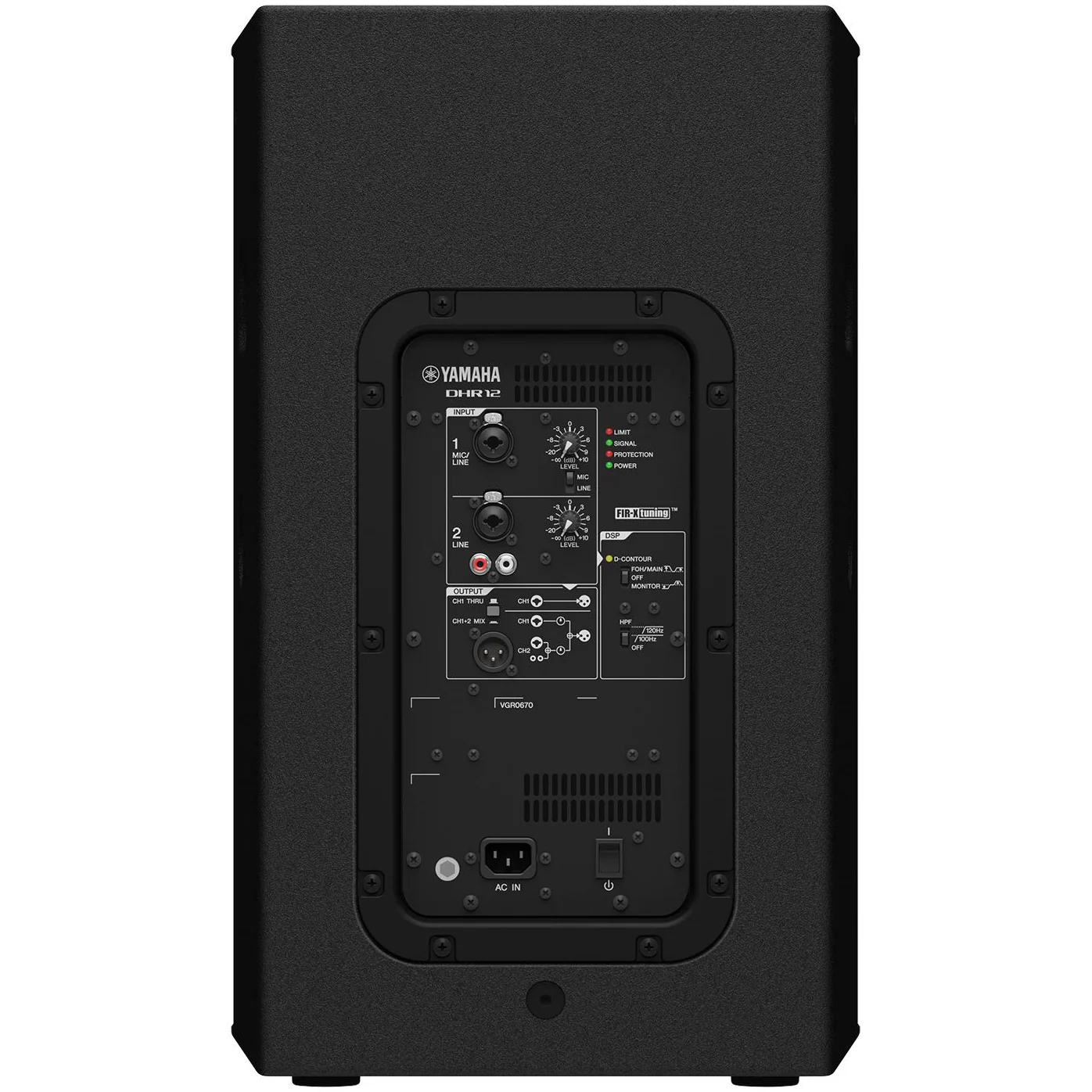

I/O Connectors

• Input 1: Combo Jack x 1
• Input 2: Combo Jack x 1 + RCA pin x 2 (Unbalanced)
• Output: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
