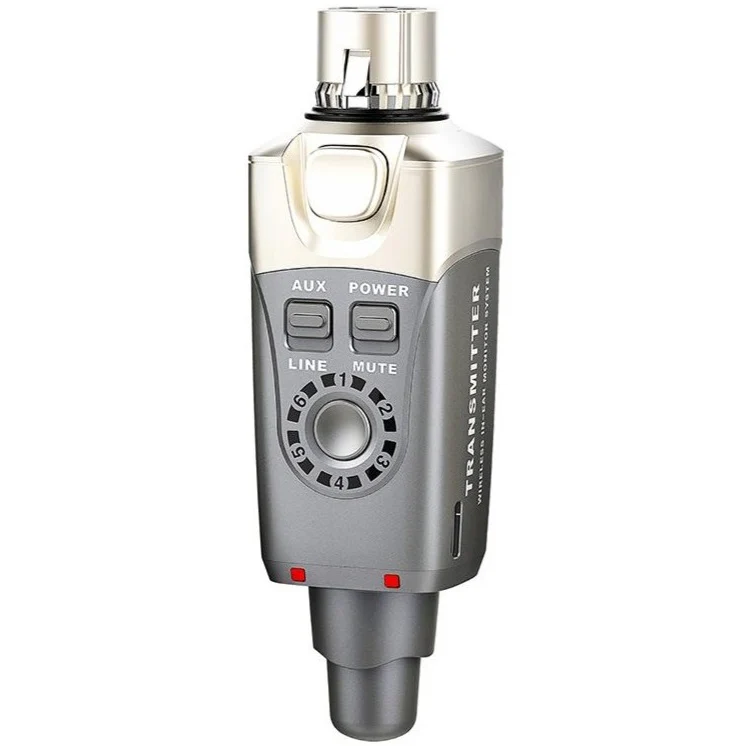

Xvive U4T In-Ear Monitor Wireless Transmitter
Transmitter Only
- Input: XLR balanced input jack
- 2 Spring: Circumferential ground spring providing an
- accurate connection to the mating shell
- 3 Lock: secures transmitter
- 4 Aux/Line mode: Connect to Aux or line out
- 5 Power switch: switches unit on/off
- 6 Channel status LED: indicates selected channel
- 7 Channel switch: selects Channels 1-6
- 8 USB charging port
- 9 Power status LED: indicates power status:
- Led off = 100% ~ 30%
- Solid red = 29% ~ 11%
- Flickering red = less than 10%
- 10 Antenna.
- BASIC OPERATION
- U4 TRANSMITTER
Specs
- Dimensions 30 X 28 X 100 mm
- Weight 90g
- Housing Molded plastic and cast metal
- Battery 3.7V Rechargeable Li-ion, 860mAh
- Imepdance Input 47kΩ (1KHz)
- Audio Input Connector Balanced XLR Male input
- Mode
- Aux mode: -10dBV | Max. +12.2dBu
- Line mode: +4dBu | Max. +22dBu
- Battery Life Up to 5 Hours
- Antennal Impedance 50Ω
- Antenna Type 1/4 Wave Sleeve Dipole, Non-removable
- Number of Antenna 1
