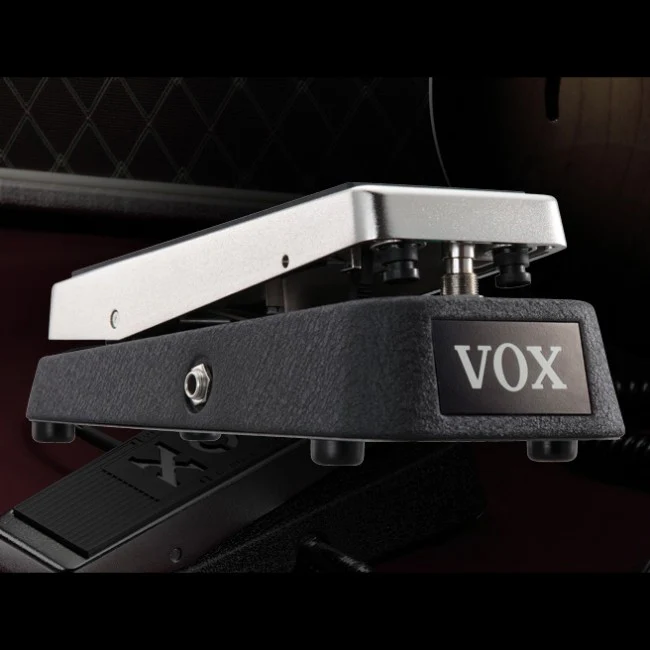

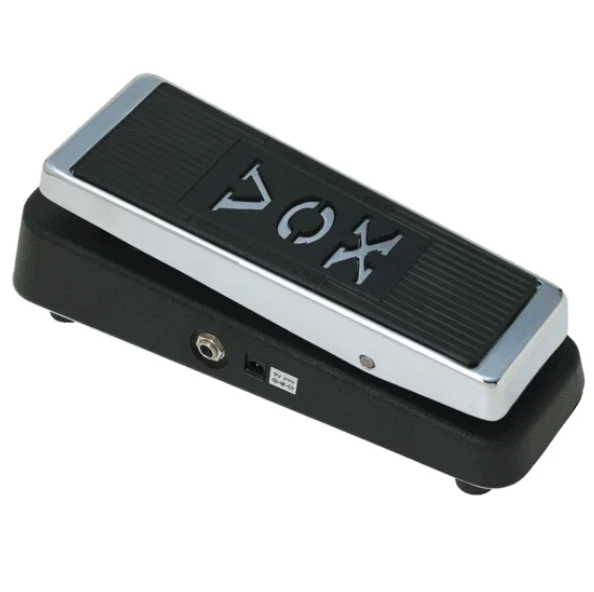

Based on the specifications of the original pedal developed by VOX in the ’60s, the new Wah-Wah offers guitarists the same legendary tone with the addition of AC power capability and a buffered input jack for preserving the unprocessed guitar tone when the pedal is not engaged. The pedal’s inductor has undergone a redesign to be closer in specification to the original VOX wah inductors, for improved dynamics and tone. These additions will benefit players of all genres who use a wah pedal as an integral part of their sound.

Specs

INPUTS

• 1 x Normal Input Jack
• 1 x AC Power Supply Jack (AC adapter sold separately)

OUTPUTS

• 1 x Line Out Jack (to amplifier)

POWER

• 1 x 9v DC Battery
• AC adapter is optional and sold separately

BATTERY LIFE

• Approximately 100 hours (will vary depending on conditions)

DIMENSIONS (W X D X H)

• 102 x 252 x 75 mm / 4.02 x 9.92 x 2.95 inches
• 1.673 kg / 3.69 lbs
