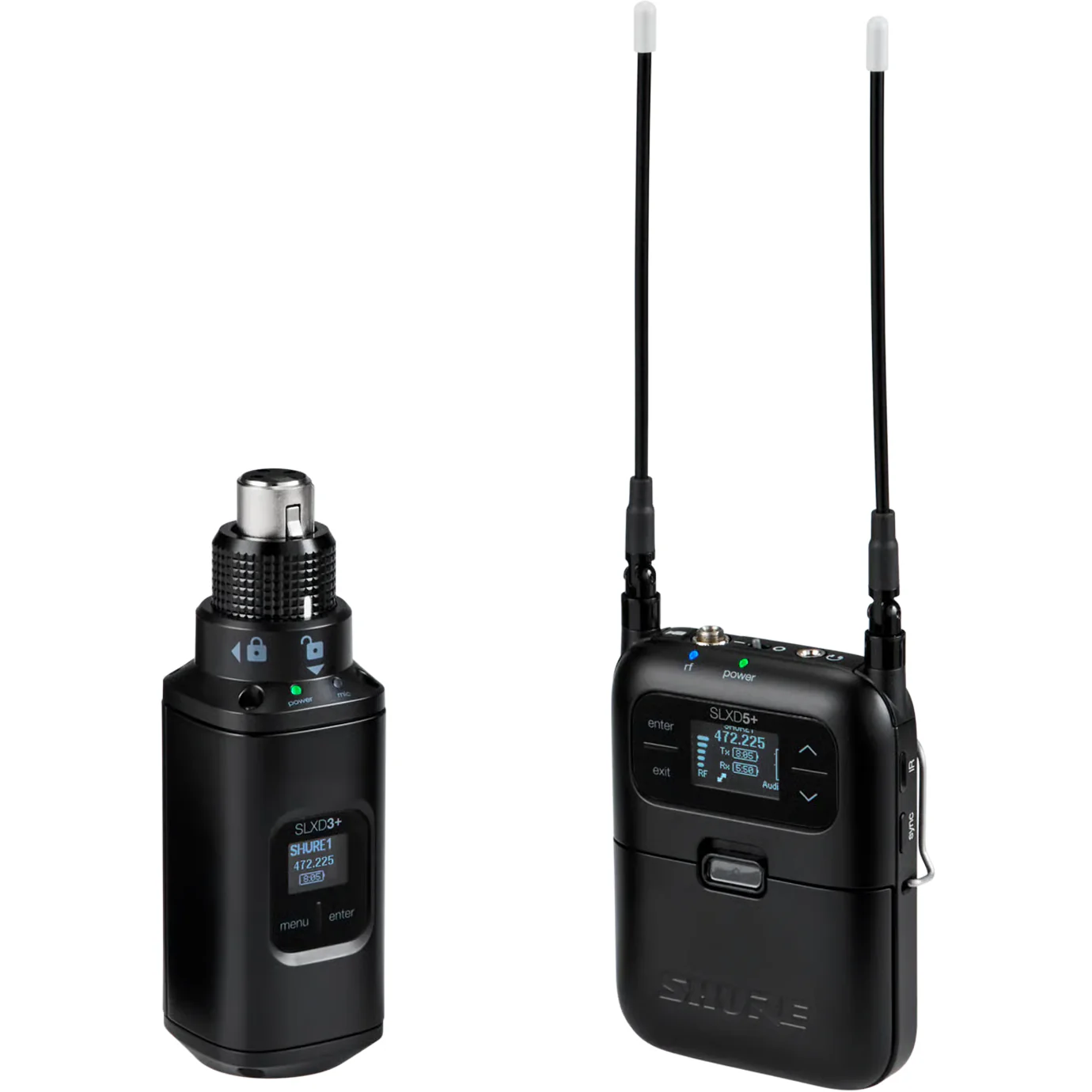

The SLXD35+ portable plug-on wireless system features the SLXD5+ Portable Receiver and the SLXD3+ plug-on transmitter for use with XLR microphones. Deliver wireless excellence, wherever required, in videography, ENG and field production, film and location sound applications. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Features

• Powerful, portable digital wireless system for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Up to 8 hours (SLXD1+)  / up to 5.5 hours (SLXD5+) of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Portable ergonomic design with rugged metal construction

Contents

• 1 SLXD5+ Single-Channel Portable Wireless Receiver

• 1 SLXD3+ Plug-on Transmitter with locking XLR connector

• 2 zippered Carrying Pouches

• 4 AA batteries

• 1 leather protective sleeve with integrated belt clip

• 1 WA311 Non-Conductive Cold Shoe Mount Adapter

Specs

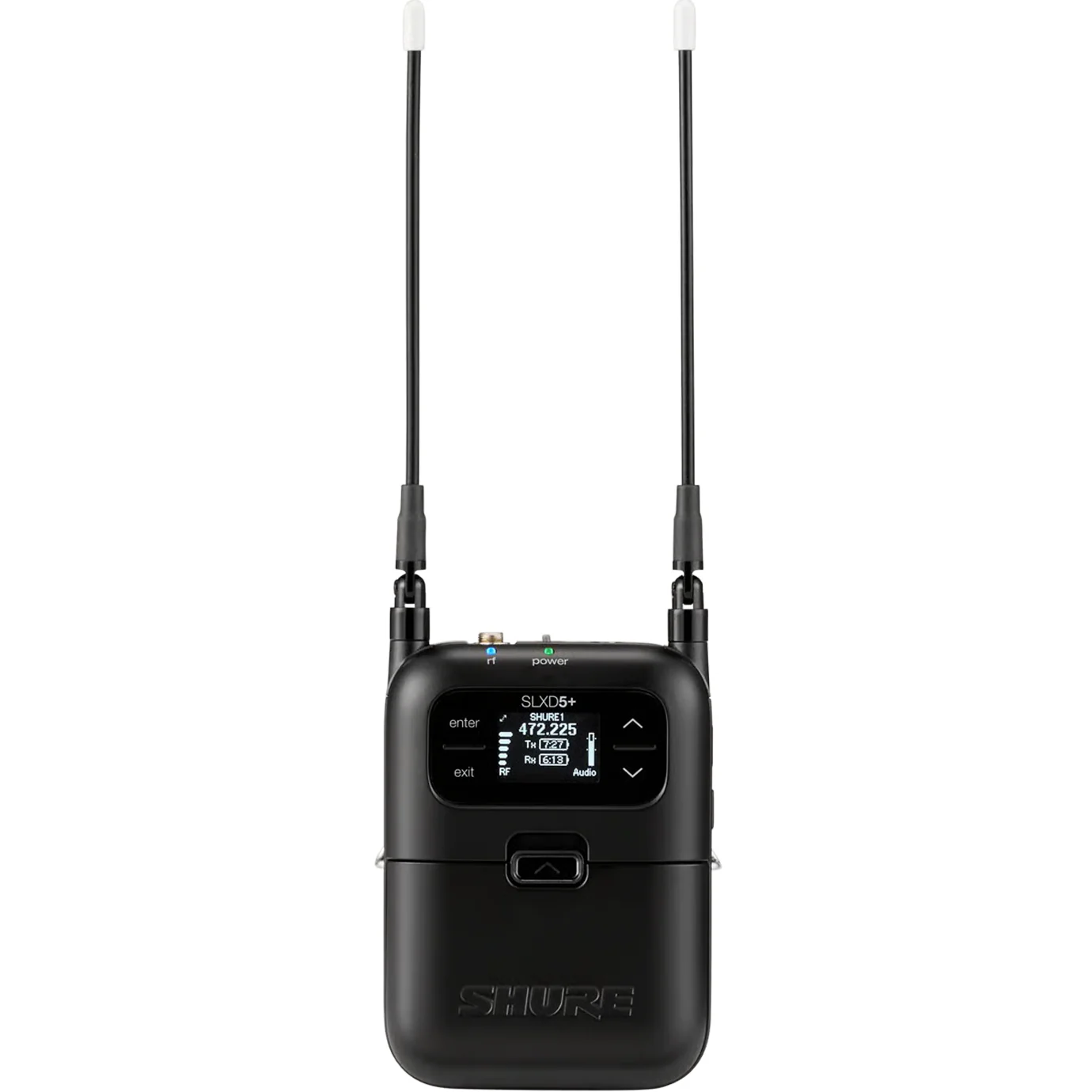

SLXD5+ Portable Digital Wireless Receiver

• Audio Quality: 24-bit digital audio with a >118 dB dynamic range.
• RF Performance: Digital predictive switching diversity for stable signal transmission.
• Bandwidth: 44 MHz tuning range (regionally dependent).
• Channel Density: Up to 32 compatible systems per 44 MHz band.
• Latency: 3.2 ms.
• I/O Terminals:
• Audio Outputs: Two 1/8" (3.5 mm) outputs, including a headphone monitor out and a switchable line/mic output.
• Power Supply: 2 x AA batteries or an optional Shure SB903 Lithium-ion rechargeable battery.
• Battery Life: Up to 6 hours with AA batteries or up to 8 hours with the SB903 battery.
• Charging: USB-C port for in-device charging of the SB903 battery and external power.
• Construction: Durable metal housing.
• Dimensions: 4.21 × 2.68 × 1.0 in (107 × 68 × 25.3 mm).
• Weight: 6.4 oz (182 g).

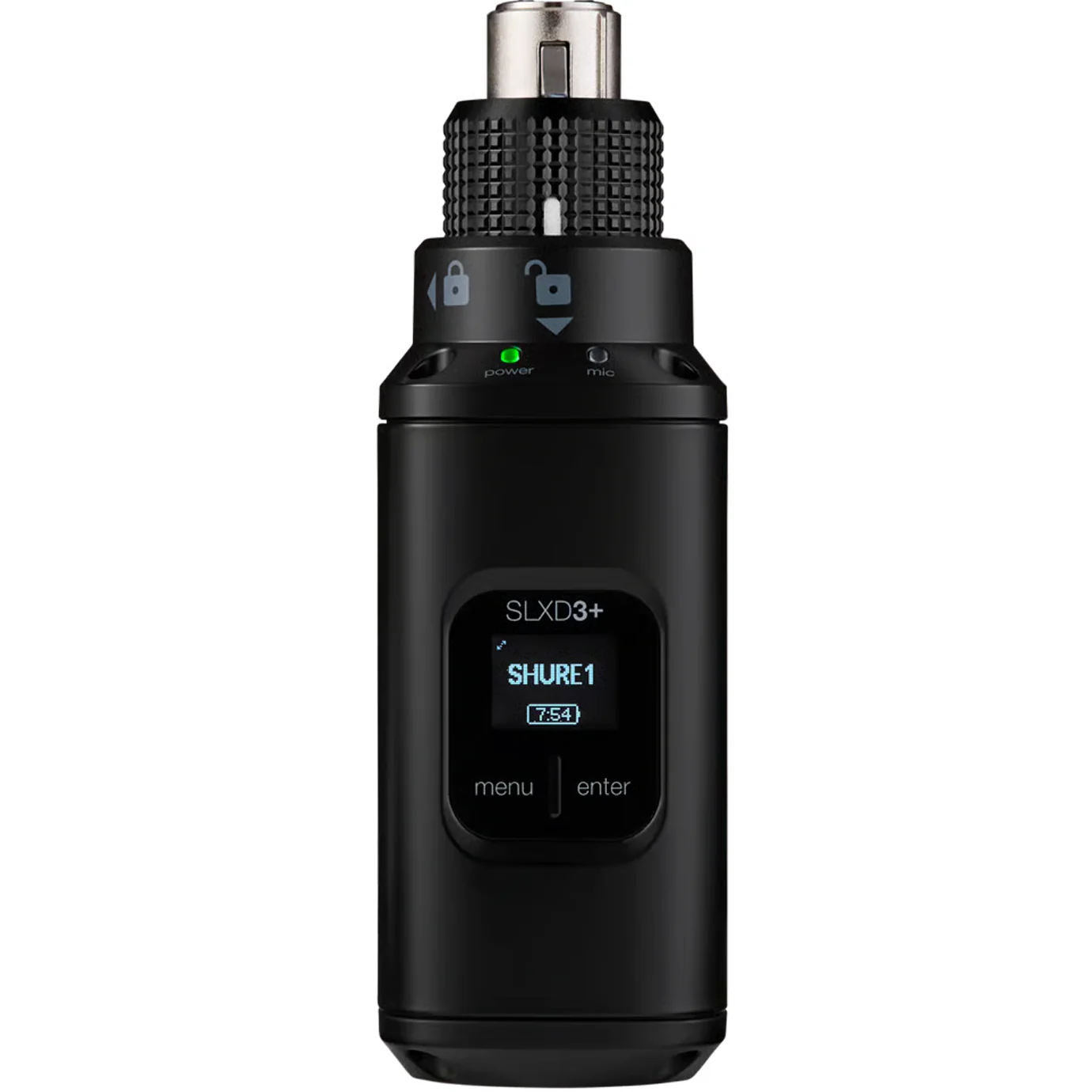

SLXD3+ Plug-On Digital Wireless Transmitter

• Audio Quality: 24-bit digital audio with a >118 dB dynamic range.
• RF Performance: 1/10 mW selectable RF output power.
• Connector: Locking XLR input.
• Phantom Power: Provides +12V and +48V phantom power for condenser microphones.
• Bandwidth: 44 MHz tuning range.
• Latency: 3.2 ms.
• Power Supply: 2 x AA batteries or an optional Shure SB903 Lithium-ion rechargeable battery.
• Battery Life: Up to 8 hours with the SB903 battery (without phantom power enabled).
• Charging: USB-C port for in-device charging and external power.
• Construction: Metal housing with a secure locking ring for microphones.
• Dimensions: 4.96 × 1.50 × 1.50 in (126 × 38 × 38 mm).
• Weight: 7.1 oz (200 g).
