The SLXD1+ bodypack transmitter unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Features

• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Ergonomic and durable plastic construction

Specs

Core Audio & RF Performance

• RF Frequency Band: G57 (470 to 608 MHz).
• Audio Quality: Transparent 24-bit digital audio.
• Dynamic Range: >118 dB.
• Latency: 2.8 ms.
• RF Output Power: Selectable 1 mW / 10 mW.
• Operating Range: Up to 328 feet (100 meters).
• Wide-Tuning Range: Up to 138 MHz (regionally dependent).
• Channel Density: Up to 11 simultaneous systems per 6 MHz TV band; up to 14 systems per 8 MHz TV band.

Connectivity & Control

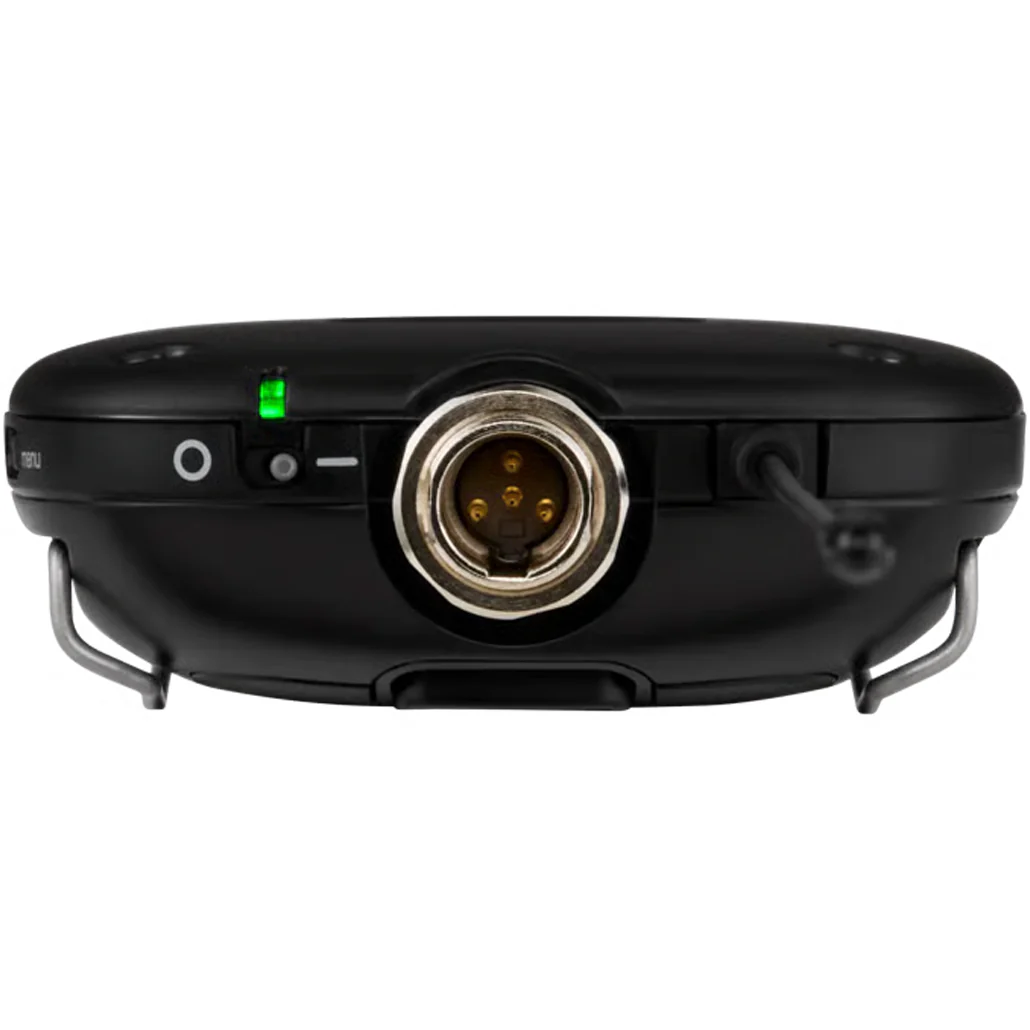

• Connector Type: Locking 4-pin male mini-connector (TA4M).
• ShowLink® Ease: Real-time remote management via the receiver, allowing for frequency changes, gain adjustment, and power level control over the air.
• Software Integration: Compatible with Shure Wireless Workbench® and the ShurePlus™ Channels mobile app for centralized monitoring and control.
• Encryption: Secure AES-256 digital encryption.

Power & Physical Specs

• Battery Type: 2 x AA batteries (included) or optional Shure SB903 Lithium-ion rechargeable battery.
• Battery Runtime: Up to 8 hours with either power source.
• Construction: Ergonomic and durable polycarbonate/ABS plastic.
• Antenna: Fixed 1/4 wave.
• Display: Backlit front-panel LCD with essential system status (battery life, RF level, and frequency).
• Dimensions: 2.68" W x 3.86" H (8.08" including antenna) x 1.0" D.
• Weight: 3.1 oz. without batteries.
