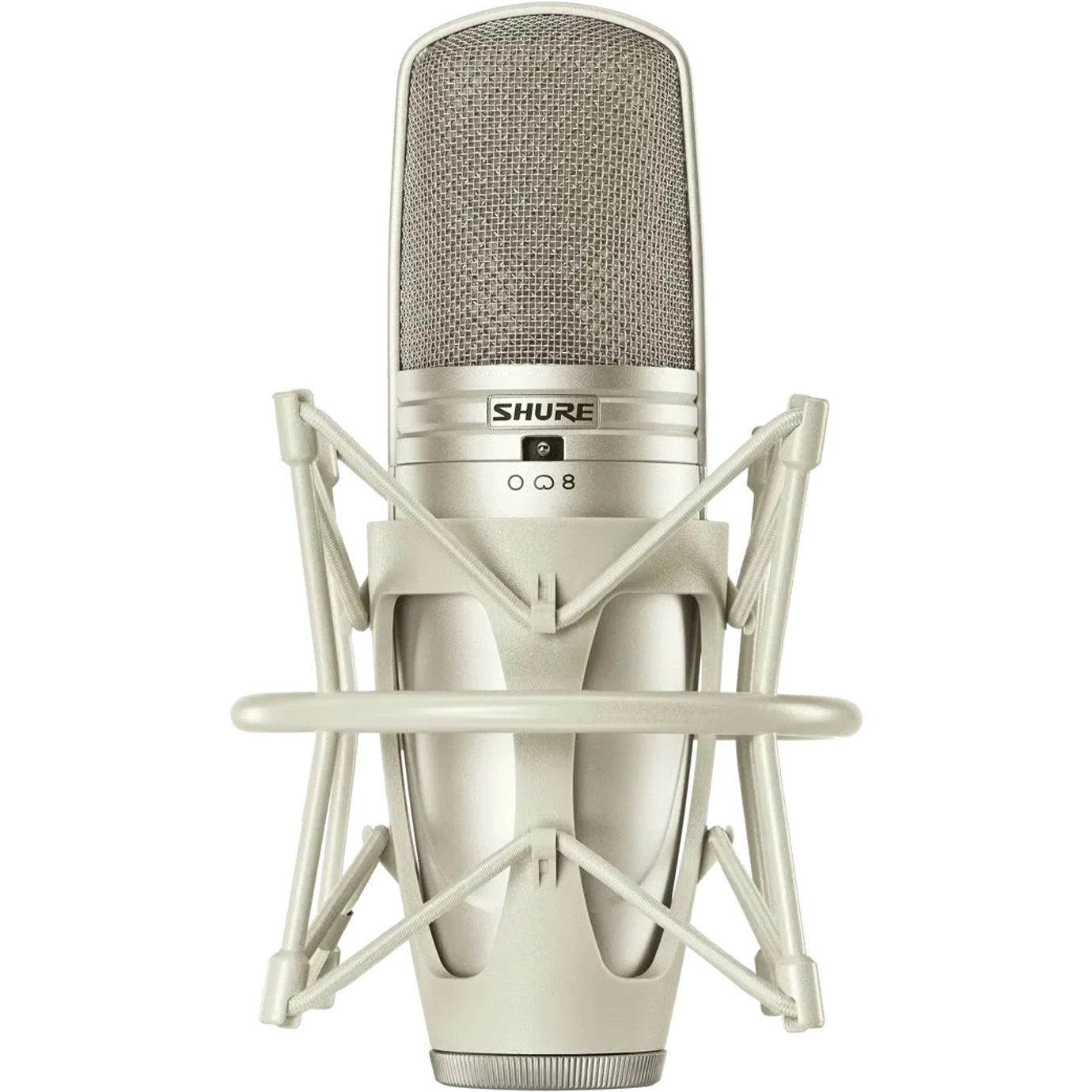

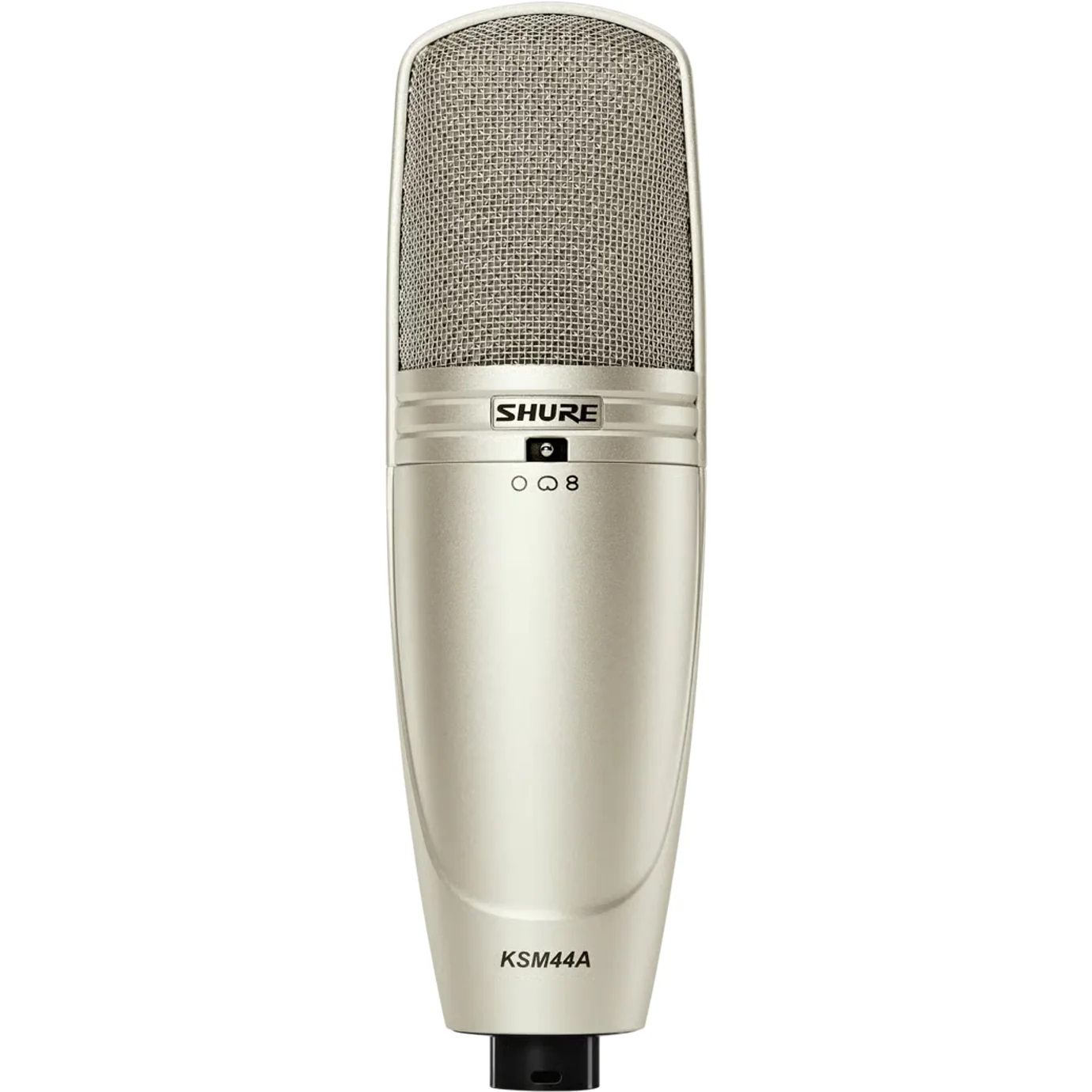

The KSM44A is a premium, large-diaphragm, side-address condenser microphone with multiple polar pattern options (cardioid, omnidirectional, bidirectional). The refined and sophisticated design of the KSM44A features an externally biased, dual 1-inch diaphragms, extensive internal pop filtering and Prethos® Advanced Preamplifier Technology for a ground-breaking threshold minimum of self-noise. The KSM44A is the premier choice for the highest level of professional studio and stage performance.

More

Multi-pattern condenser offers great recording flexibility due to its compatibility with multiple polar pattern condensers. It features dual gold Mylar diaphragms for superior transient response, a subsonic filter, and preamplifier for transparency.

A milestone achievement in sound reinforcement, Prethos Advanced Preamplifier Technology employs transparent internal circuitry architectures that enable unprecedented audio quality and performance.

Features

• Prethos® Advanced Preamplifier Technology: Class A, discrete, transformerless preamplifier provides transparency, extremely fast transient response and no crossover distortion. Minimizes harmonic and intermodulation distortions.

• Groundbreaking specifications: 4dB of self-noise and max SPL of 131 dB for a total dynamic range of 127 dB – an increase of 7 dB that defines the new standard for cleanly nuanced audio capture

• Multiple polar patterns–cardioid, omnidirectional and bidirectional–for maximum flexibility in a wide variety of recording applications

• Dual 1 inch, externally biased, ultra-thin, 2.5 μm, 24 Karat gold-layered, low mass diaphragms provide superior frequency response

• Premium electronic components and gold-plated internal and external connectors

• Subsonic filter eliminates rumble from mechanical vibration below 17 Hz.

• Switchable 15 dB pad for handling extremely high sound pressure levels (SPLs)

• 3-position switchable low-frequency filter helps reduce unwanted stand vibration noise or counteract proximity effect

• Integrated three-stage “pop” protection grille reduces plosives and other breath noise

Specs

Microphone Type

• Cartridge Type: Condenser (externally biased)
• Polar Patterns: Cardioid, Omnidirectional, Bidirectional

Audio

• Frequency Response: 20 to 20,000 Hz
• Output Impedance: 50 ohms
• Attenuator Switch: 15 dB
• Low-Frequency Filter Switch:
  • Flat
  • –6 dB/octave below 115 Hz
  • –18 dB/octave below 80 Hz
• Common Mode Rejection:
  • 10 to 100,000 Hz: > 50 dB
  • 20 Hz to 20 kHz: > 50 dB
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Power Requirements

• Phantom Power: 11–52 V DC (IEC-61938)
• Current Draw: 5.8 mA maximum

Physical

• Net Weight: 492 g (17.4 oz.)
• Connector: Three-pin professional audio XLR, male, balanced
