Take charge of the low-frequency foundation of your mix with the Eris® Pro Sub 10. Designed to meet the demanding needs of serious home studios and professional music-production environments, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system's low end with a natural sound.

Powerful and musical, the PreSonus® Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10's 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone.

Extensive user controls include a continuously variable lowpass filter for creating a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible. An onboard footswitch control lets you quickly A/B your mix with and without the subwoofer for easy referencing.

More

Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.

Seamless system integration.
The Eris® Pro Sub 10 integrates seamlessly with your full-range monitors. A variable lowpass filter sets the upper (crossover) frequency reproduced by the subwoofer. A switchable highpass filter on the full-range outputs helps avoid frequency cancellation and reinforcement in the subwoofer’s upper range, while a polarity-invert function ensures your system is in phase. A momentary footswitch (included) makes it easy to compare your mix with or without sub-bass frequencies.

Features

• 10-inch, front-firing, glass-composite, low-frequency transducer

• Front-firing, bass-reflex acoustic port

• Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer

• Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors

• Momentary footswitch (included) bypasses the subwoofer, highpass filter, and
• Sub Out

• Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch

• 170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

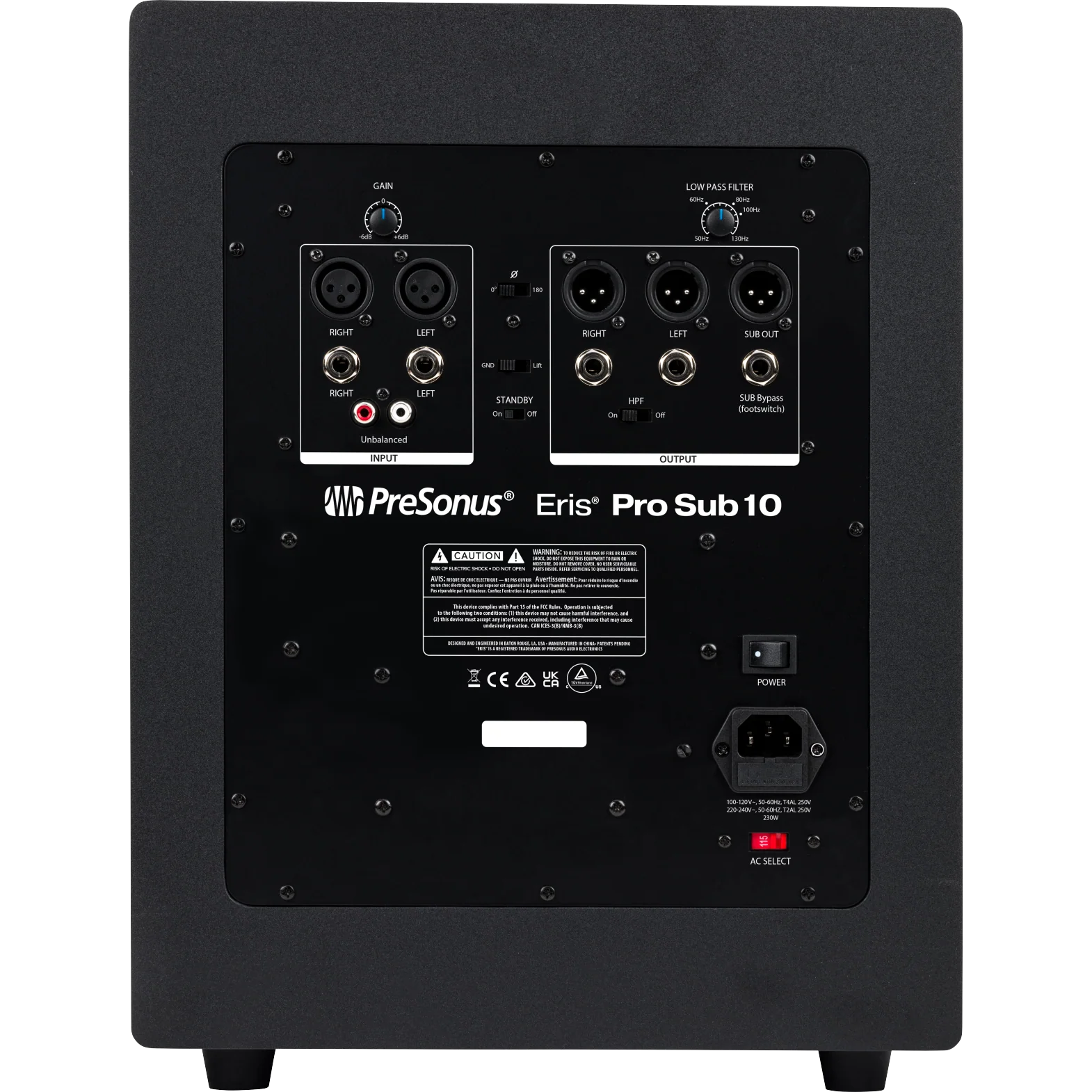

• Left and right, balanced XLR and ¼-inch TRS and unbalanced RCA main inputs

• Left and right balanced XLR and ¼-inch TRS outputs and XLR subwoofer output for connecting a second Eris® Pro Sub 10

Specs

• General

  • Series: Eris®

  • Color: Black

  • Country Of Origin: CN

• Electronics

  • Voltage: 120V

  • Performance

  • Peak SPL: 113 dB (@ 1 Meter)

• Hardware

  • Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard

  • Audio Controls: Input Gain Range: -30 to +6 dB Low Pass Filter Control: 50 Hz to 130 Hz

  • Audio Switches: Polarity Switch: 0 degrees or 180 degrees Ground Lift Switch: On/Off High Pass Filter Switch: On/Off Bypass Footswitch: On/Off

  • Monitor Inputs: 2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA

  • Monitor Type: Active Subwoofer

  • Power Amplifier Type: Class AB

• Measurements

  • Dimensions: 17.00x20.20x21.30 IN

  • Shipping Weight: 37.00 LB

  • Product Depth: 16" (40.6 cm)

  • Product Height: 15.75" (40 cm)
