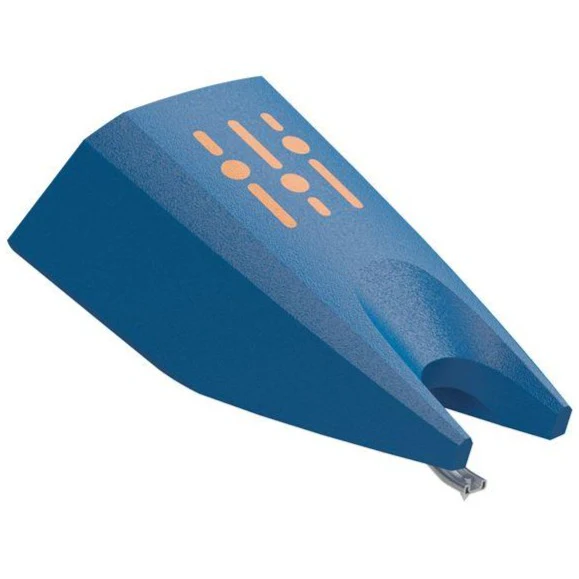

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out

Specifications

• Output voltage at 1000Hz, 5cm/sec. - 6 mV
• Channel balance at 1kHz - 1 dB
• Channel separation at 1kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Tracking ability at 315 Hz at recommended tracking force - 100 μm
• Compliance, dynamic lateral - 14 μm/m N
• Stylus type - Spherical R 18 μm
• Tracking force range - 3 - 5 g
• Tracking force recommended - 4 g
• Concorde cartridge weight - 18.5 g
